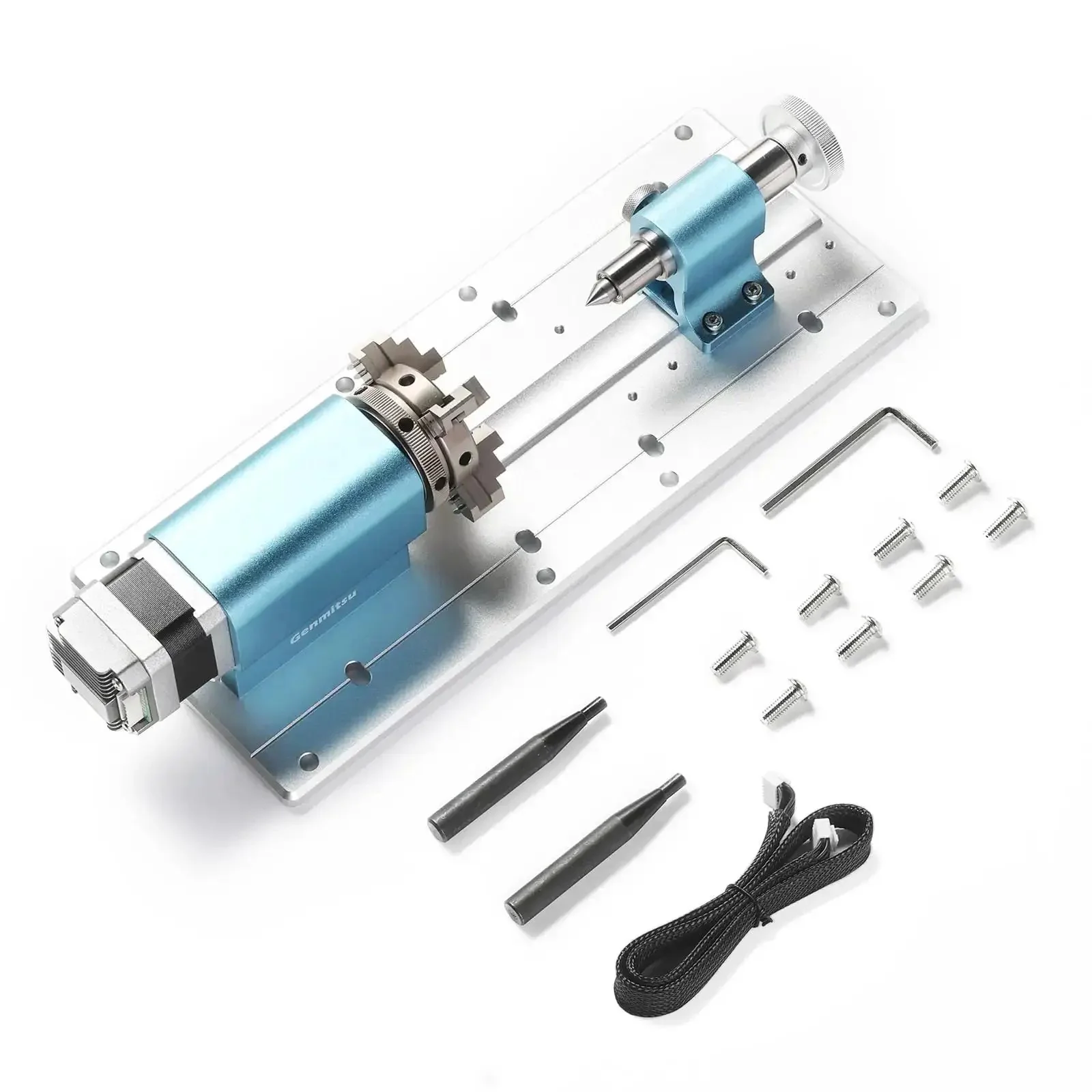

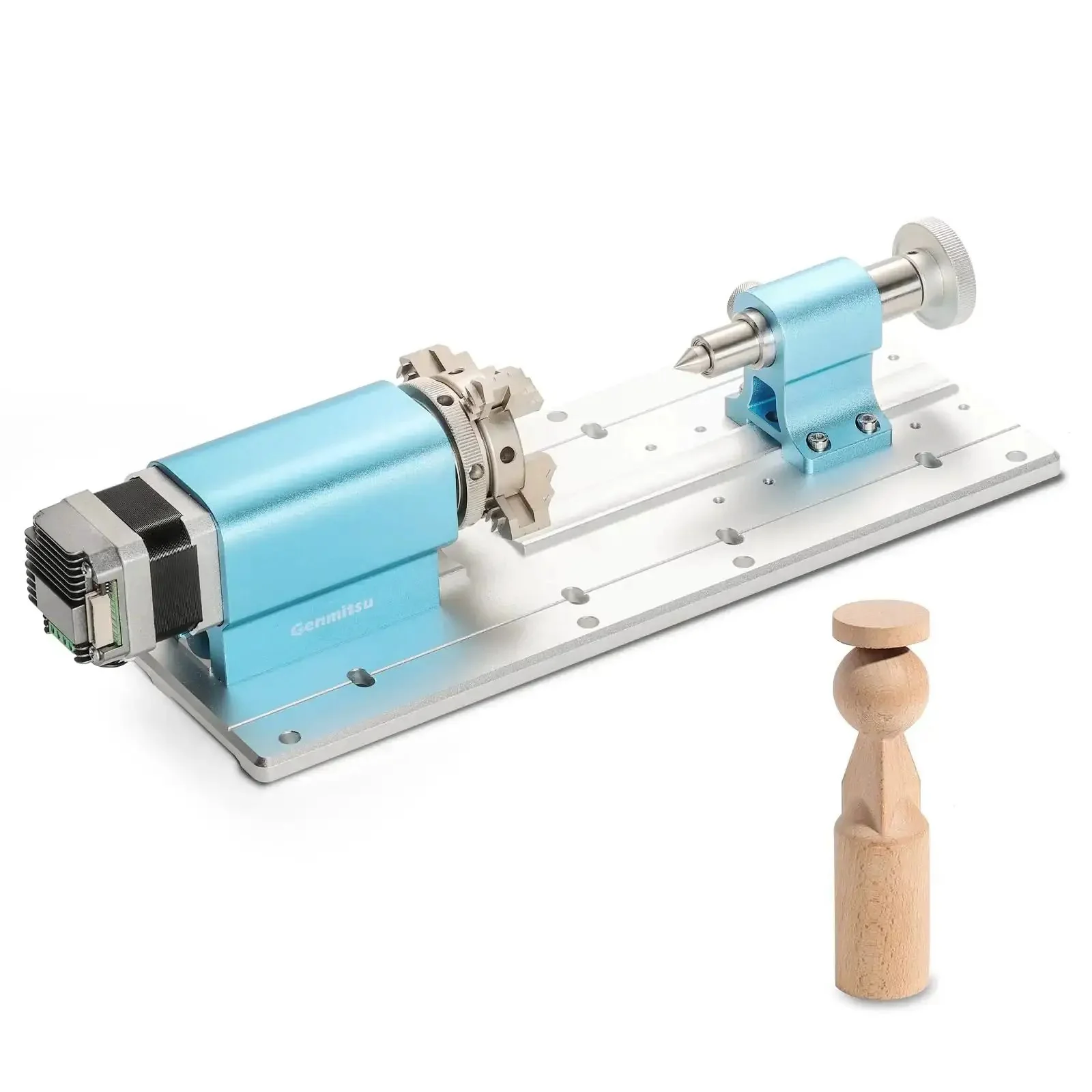

4th Axis Rotary Module Upgrade - 4040/3030 CNCs, single kit
✔️ Drop-in upgrade for 4040/3030 CNCs with 10:1 gear ratio

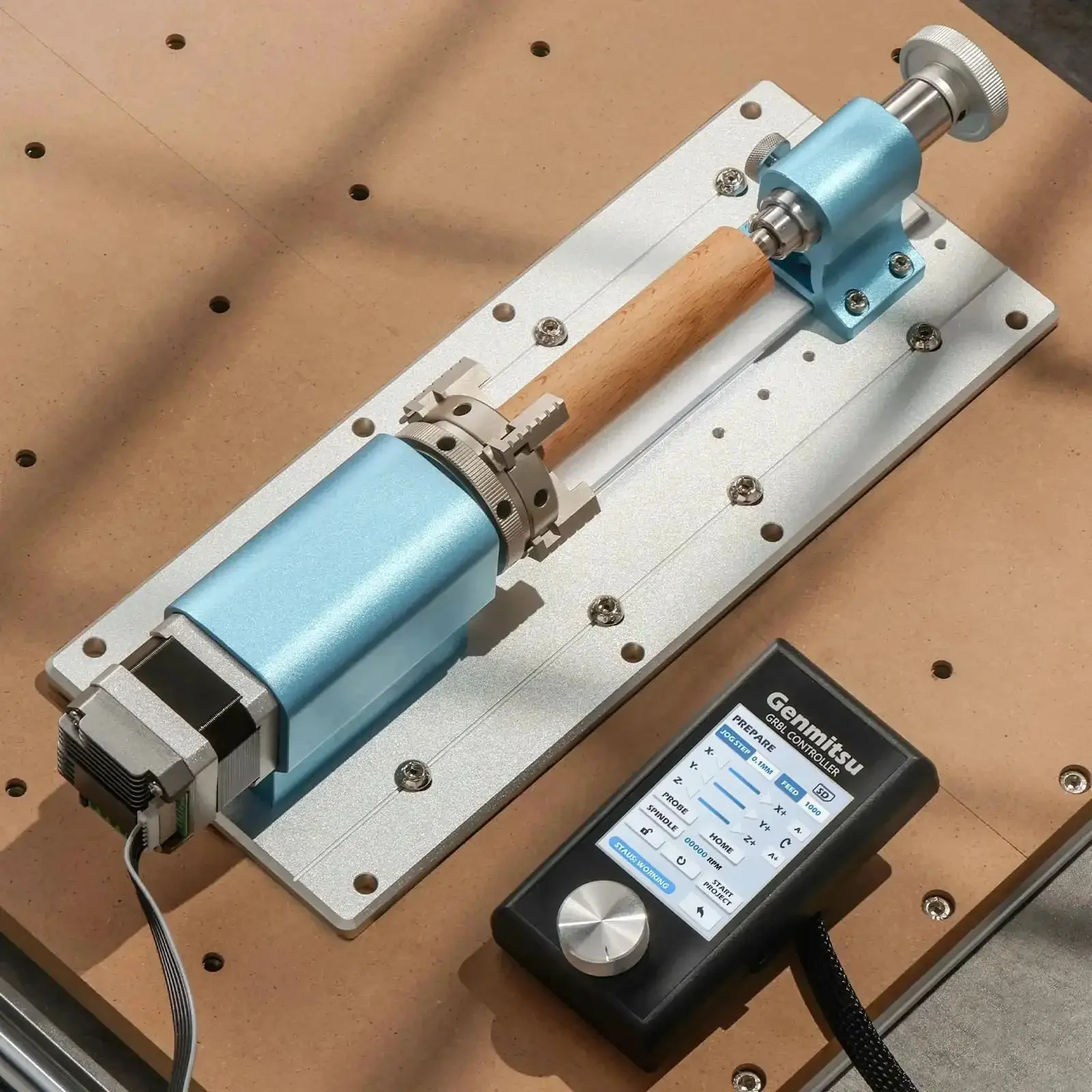

The 4th axis rotary module adds rotary motion to CNC setups, expanding carving capabilities beyond standard 3-axis work. It’s designed as a drop-in upgrade for 4040-PRO, 4040-PRO MAX, 3030-PROVer Ultra, and 3030-PROVer MAX machines, enabling angled and rotary carving. For the 4040 series, an offline controller (B0C582HQ6Z) is required to drive the 4th axis; the 3030 series includes the offline controller.

Dimension	Value

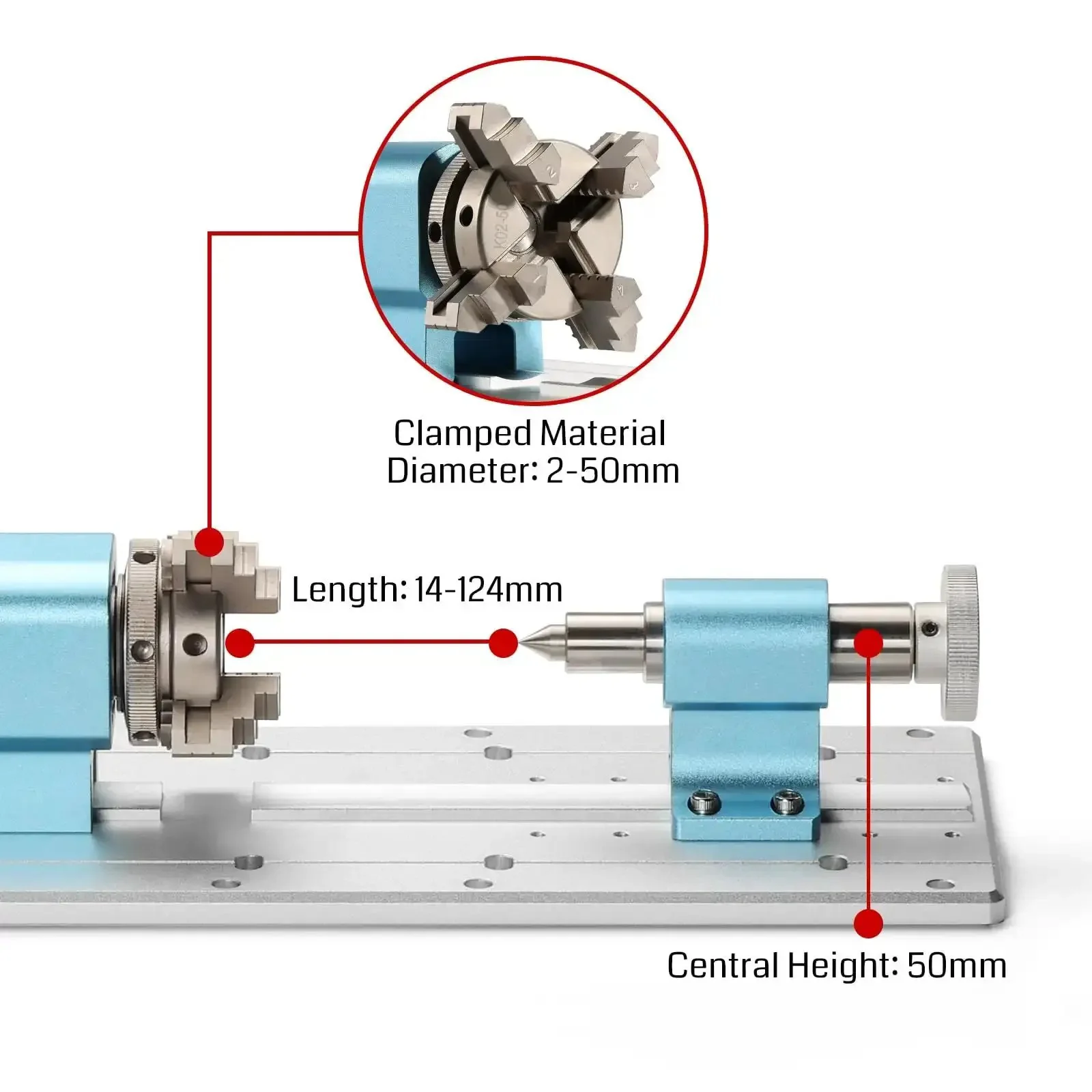

Center height	50 mm (1.97 in)

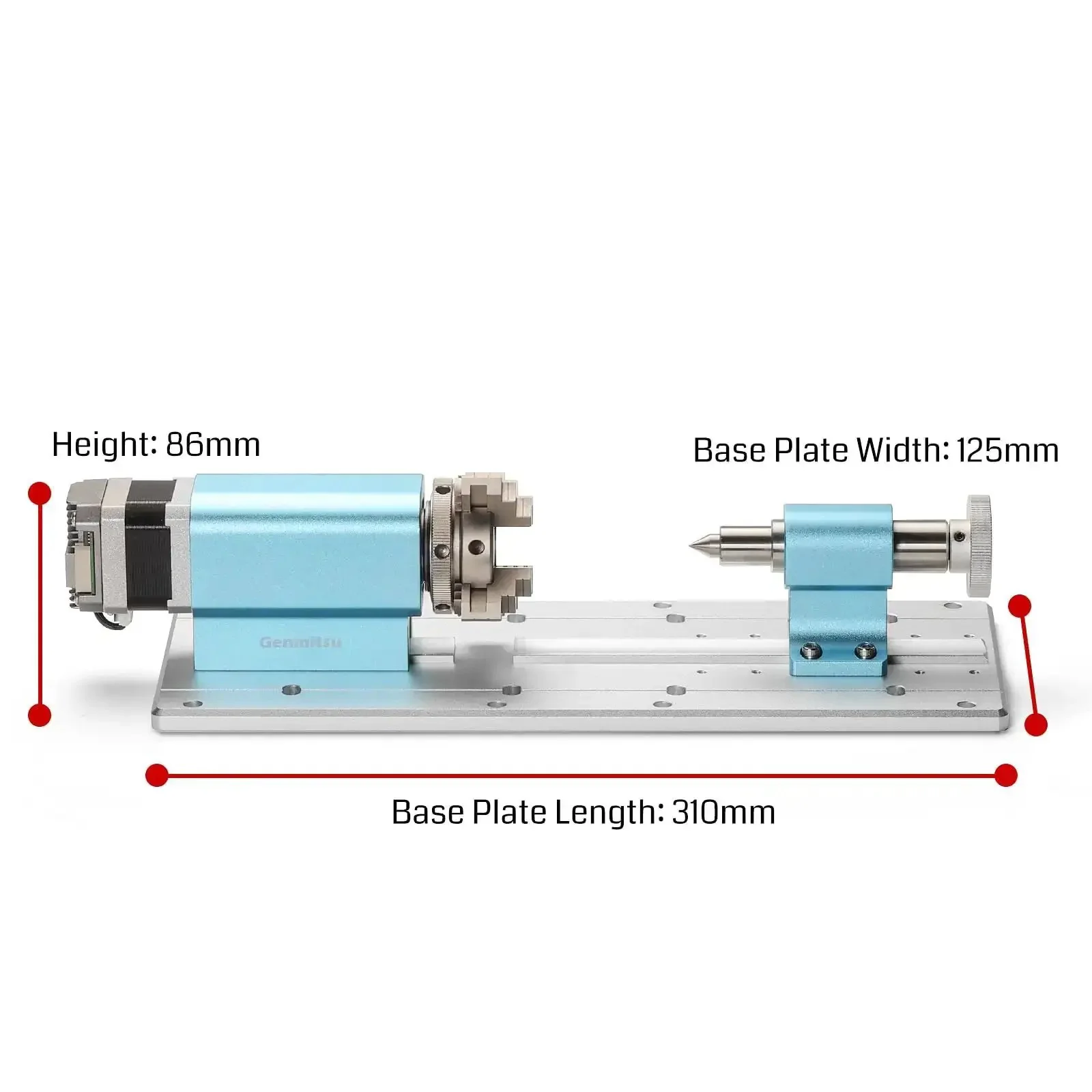

Total height	86 mm (3.39 in)
Tailstock length with tailstock	10-100 mm (0.39-3.94 in)
Tailstock length without tailstock	10-200 mm (0.39-7.87 in)
Applicable material diameter	2-50 mm (0.08-2.00 in)
Clamp option	4 jaw chuck included

✅ Center height: 50 mm (1.97 in)
✅ Total height: 86 mm (3.39 in)
✅ Tailstock length with tailstock: 10-100 mm (0.39-3.94 in)
✅ Tailstock length without tailstock: 10-200 mm (0.39-7.87 in)
✅ Applicable material diameter: 2-50 mm (0.08-2.00 in)

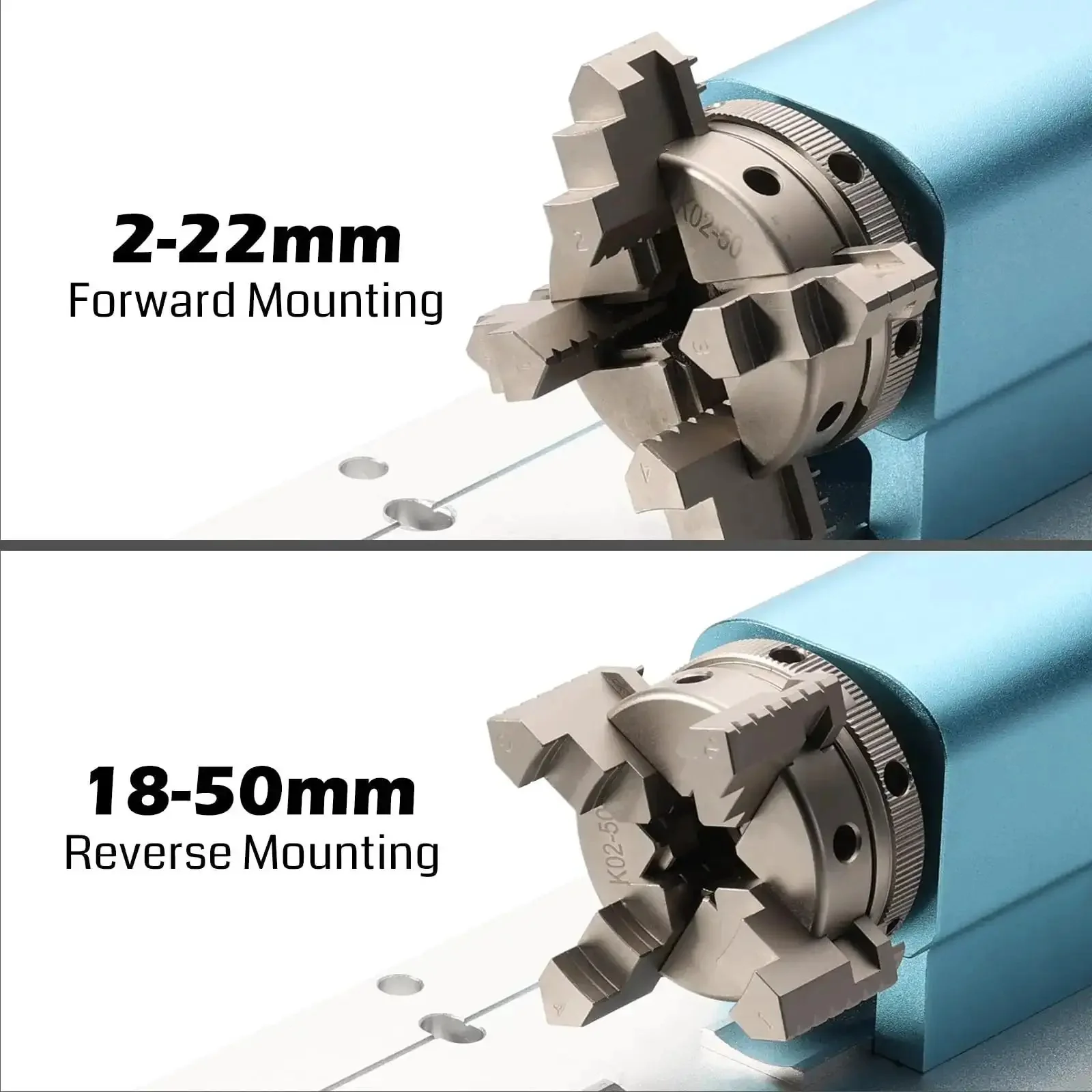

✅ 4 jaw chuck included for gripping 2-50 mm parts

💡 What is a 4th axis rotary module used for in CNC carving?

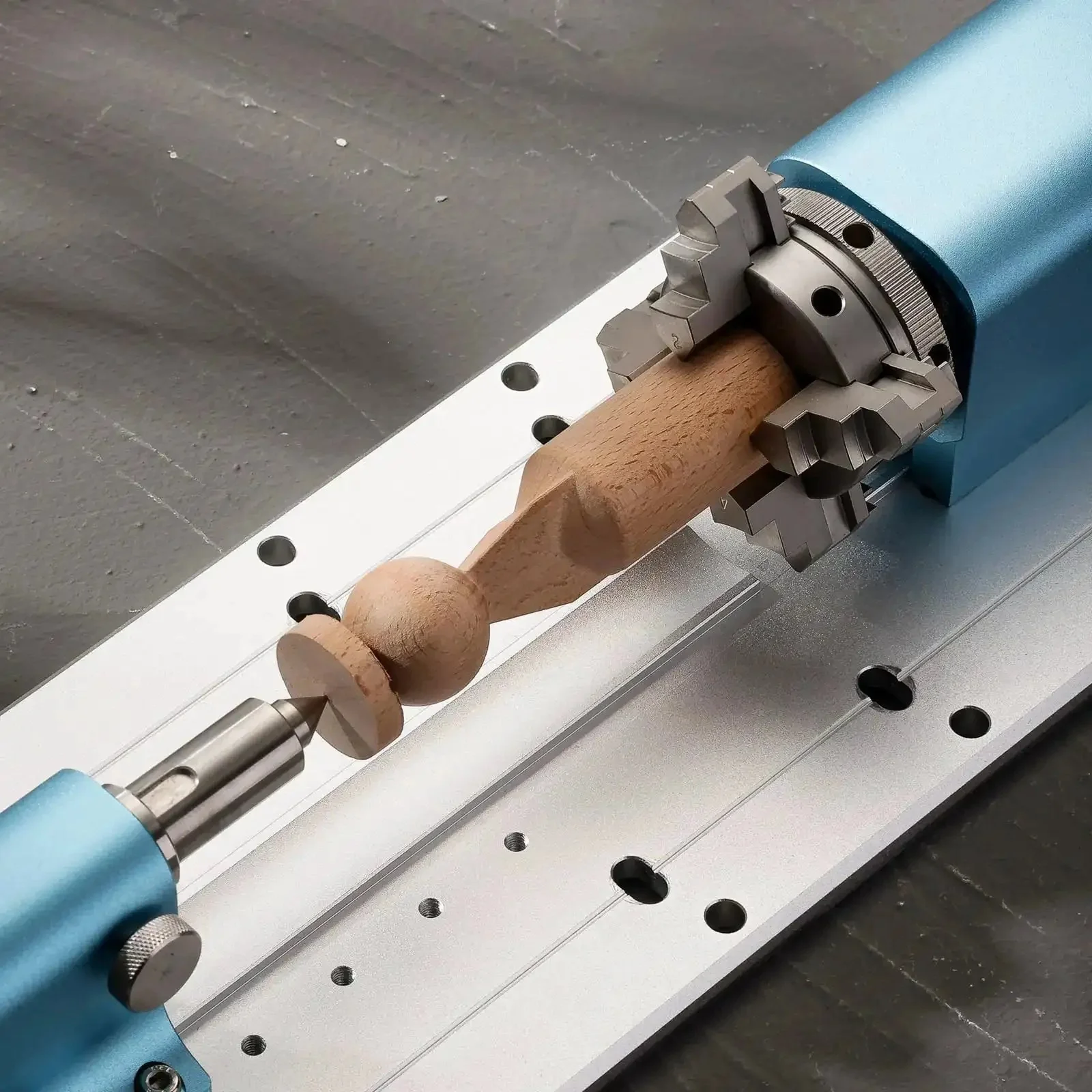

This rotary add-on lets you program rotary toolpaths to carve on round stock, enabling curved features and complex angles. - Handy for curved profiles on cylindrical workpieces - Requires CAD/CAM software capable of generating rotary toolpaths - Works with an offline controller for G-code transfer on compatible machines - Improves torque and precision with a 10:1 reduction and 0.1° minimum angle
